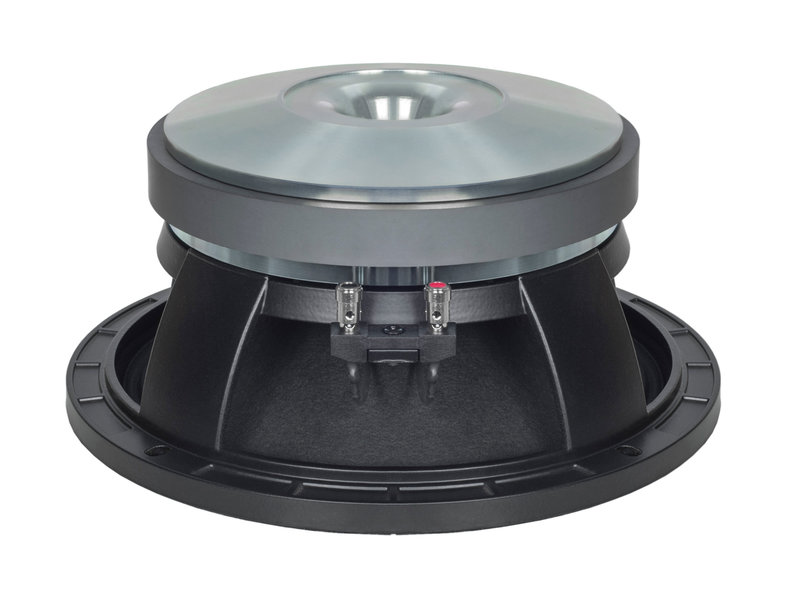

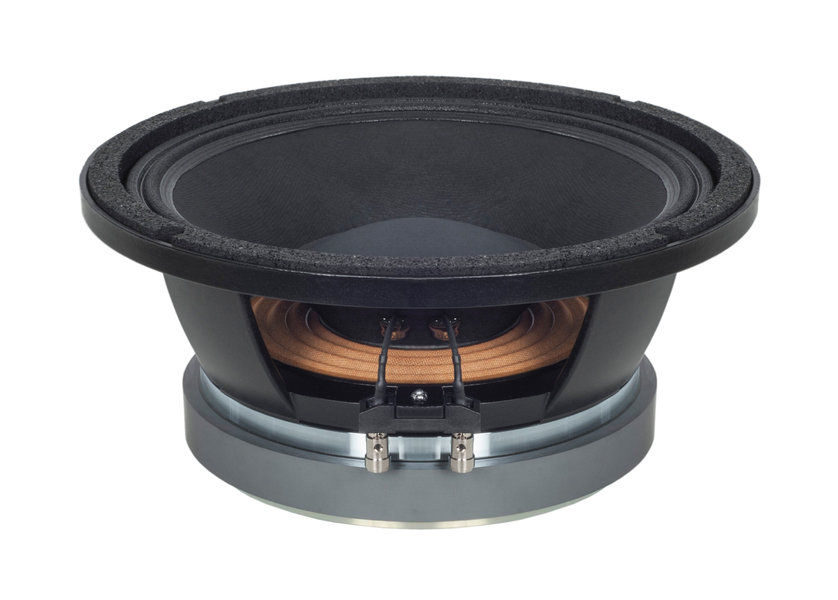

10MD26
Specifications
- Nominal Diameter250 mm (10.0 in)
- Nominal Impedance8 Ω
- Minimum Impedance7.2 Ω
- Nominal Power Handling1350 W
- Continuous power handling2700 W
- Sensitivity (1W/1m)3100.0 dB
- Frequency Range80 - 4000 Hz
- Voice Coil Diameter76 mm (3.0 in)
- Winding MaterialAluminium
- Former MaterialGlass Fibre
- Winding Depth11.0 mm (0.43 in)
- Magnetic Gap Depth8.0 mm (0.31 in)
- Flux Density1.45 T
Design
- Surround ShapeDouble Roll
- Cone ShapeExponential
- Magnet MaterialFerrite
- SpiderSingle
- Pole DesignT-Pole
- Woofer Cone TreatmentNone
Parameters4
- Resonance Frequency76 Hz
- Re5.8 Ω
- Qes0.22
- Qms4.8
- Qts0.21
- Vas20.0 dm3 (0.71 ft3)
- Sd320.0 cm2 (49.1 in2)
- η₀3.9 %
- Xmax± 1.5 mm
- Xvar± 4.5 mm
- Mms31.0 g
- Bl19.6 Txm
- Le1.2 mH
- EBP345 Hz
Mounting and Shipping Info
- Overall Diameter262 mm (10.3 in)
- Bolt Circle Diameter245 mm (9.6 in)
- Baffle Cutout Diameter230.0 mm (8.8 in)
- Depth124 mm (4.9 in)
- Flange and Gasket Thickness14 mm (0.55 in)
- Air Volume Occupied by Driver2.6 dm3 (0.09 ft3)
- Net Weight7.3 kg (16.1 lb)
- Shipping Units1
- Shipping Weight7.9 kg (17.4 lb)
- Shipping Box295x314x175 mm (11.61x12.36x6.89 in)
10MD26
Precio de oferta$189.00
Precio normal (/)
