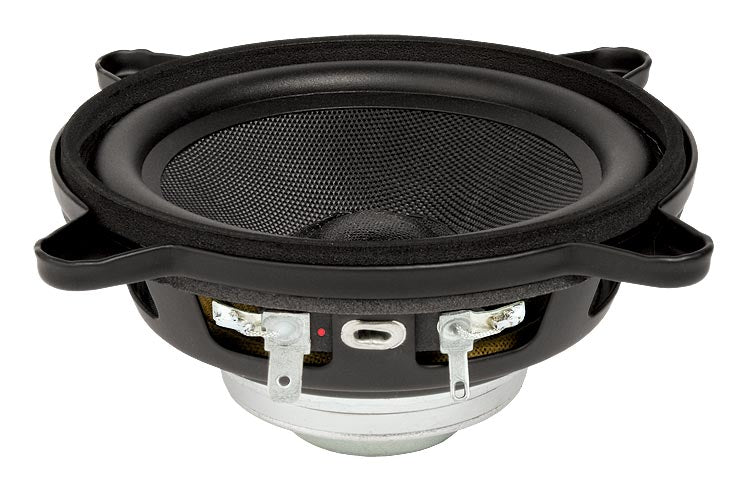

4FE32

Precio de oferta$39.99

NOMINAL SPECIFICATIONS

NEODYMIUM MAGNET

Nominal Diameter 100 mm (4 in)
Overall Diameter 129.85/100.5 mm (5.11/3.96 in)
Bolt Circle Diameter 115.26 mm (4.54 in)
Baffle Cutout Diameter 91.5 mm (3.60 in)
Depth 49.8 mm (1.96 in)
Flange and Gasket Thickness 7.2 mm (0.28 in)
Net Weight 270 g (0.6 lb)
Shipping Box
(Single Carton Box - 8 units)
225 x 225 x 150 mm
(8.9 x 8.9 x 5.9 in)
Shipping Weight (8 units) 2.8 kg (6.2 lb)


TECHNICAL PARAMETERS
Nominal Impedance 4 Ohm
Minimum Impedance 3.8 Ohm
AES Power Handling (1) 30 W
Maximum Power Handling (2) 60 W
Sensitivity (1W/1m) 91 dB
Frequency Range 90÷20000 Hz
Voice Coil Diameter 19 mm (0.75 in)
Winding Material Al
Former Material Kapton
Winding Depth 6.8 mm (0.27 in)
Magnetic Gap Depth 4 mm (0.16 in)
Flux Density 1.4 T
Magnet Neodymium Ring
Basket Material Steel
Demodulation No
Cone Surround (3) Half Roll
NET Air Volume filled by Loudspeaker 0.075 dm^3 (0.003 ft^3)
Spider Profile 1x constant height waves
