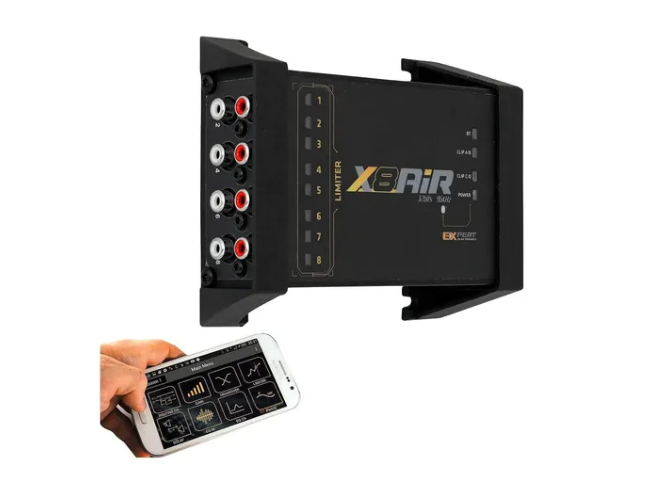

X8 AIR

X8 Air
Technical specification:
• 8 Channels
• Channel Routing
• 28 Bands of Input EQ
• 1 Band Parametric EQ per Channel
• MUTE
• PHASE
• LIMIT
• GAIN
• DELAY
• RESET
• Control Through App* Available iOS and Android
• Preset with All Settings
• Cutoff Frequency: 20Hz to 20kHz
• Types of Cut: Linkwitz-Riley / Butterworth / Bessel
• Attenuations: 6/12/18/24/36/48dB/8º
• EQ IN EQ Bands: 28 Bands
• EQ IN Gain: -12a+12dB
• Inputs (Left/Right)
• Number of Entries: 4
• Type: Electronically Symmetrical
• Connectors: RCA
• Max. Input Level: 4.00Vrms (+14dBu)
• Input Impedance: 100 Kohms
• Number of Outputs: 8
• Connectors: RCA
• Type: Electronically Symmetrical
• Max. Input Level: 3.50Vrms (+13dBu)
• Output Impedance: 100 Kohms
• Rep. Frequency: 10Hz to 24kHz (-1dB)
• THD+N: <0.01%
• Signal Latency: <0.6ms
• Bitrate: 32Bits
• Freq. Sampling: 96kHz
• DC Voltage: 10~15VDC
• Max Consumption: 300mA
• Approximate Size (HxWxL): 4.3x15x11cm

*NOTE: Free APP available on Google Play Store or Apple Store, compatible with Android 7 or higher / iOS 13 or higher.
