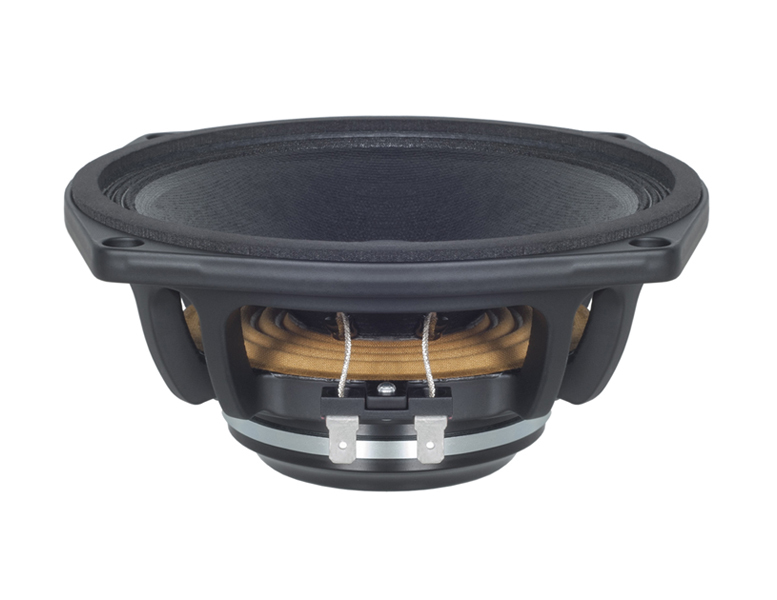

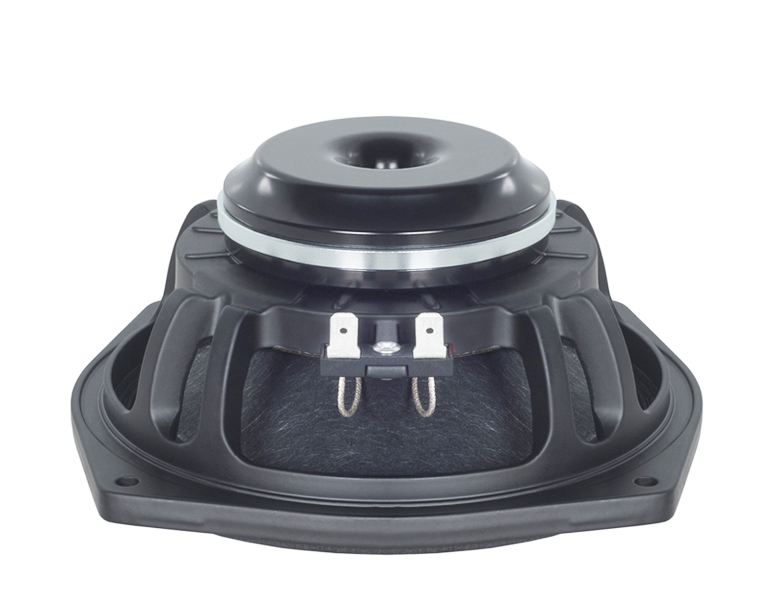

6MDN44
Specifications
- Nominal Diameter170 mm (6.5 in)
- Nominal Impedance16 Ω
- Minimum Impedance12.4 Ω
- Nominal Power Handling1200 W
- Continuous power handling2400 W
- Sensitivity (1W/1m)397.0 dB
- Frequency Range150 - 6000 Hz
- Voice Coil Diameter44 mm (1.7 in)
- Winding MaterialAluminium
- Former MaterialGlass Fibre
- Winding Depth10.0 mm (0.39 in)
- Magnetic Gap Depth6.0 mm (0.25 in)
- Flux Density1.45 T
Design
- Surround ShapeTriple Roll
- Cone ShapeExponential
- Magnet MaterialNeodymium Ring
- SpiderSingle
- Pole DesignT-Pole
- Woofer Cone TreatmentWP Waterproof Front Side
Parameters4
- Resonance Frequency138 Hz
- Re11.8 Ω
- Qes0.56
- Qms3.0
- Qts0.47
- Vas2.8 dm3 (0.1 ft3)
- Sd132.0 cm2 (20.5 in2)
- η₀1.76 %
- Xmax± 3.0 mm
- Xvar± 4.0 mm
- Mms12.0 g
- Bl14.5 Txm
- Le0.56 mH
- EBP246 Hz
Mounting and Shipping Info
- Overall Diameter187 mm (7.4 in)
- Bolt Circle Diameter172 mm (6.7 in)
- Baffle Cutout Diameter145.0 mm (5.7 in)
- Depth73 mm (2.9 in)
- Flange and Gasket Thickness11 mm (0.4 in)
- Air Volume Occupied by Driver0.6 dm3 (0.02 ft3)
- Net Weight1.0 kg (1.2 lb)
- Shipping Units1
- Shipping Weight1.25 kg (2.75 lb)
- Shipping Box221x214x130 mm (8.7x8.4x5.1 in)
6MDN44
