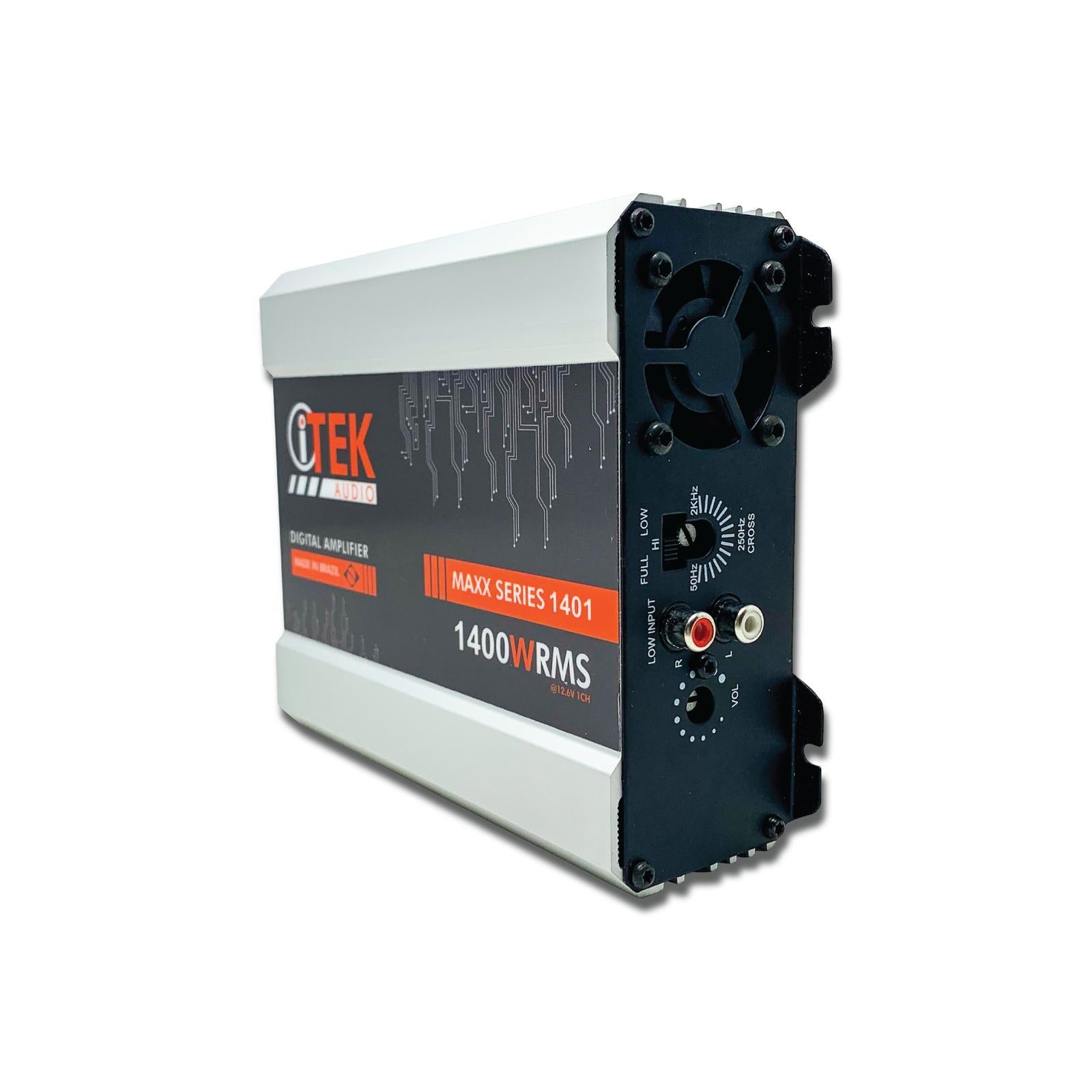

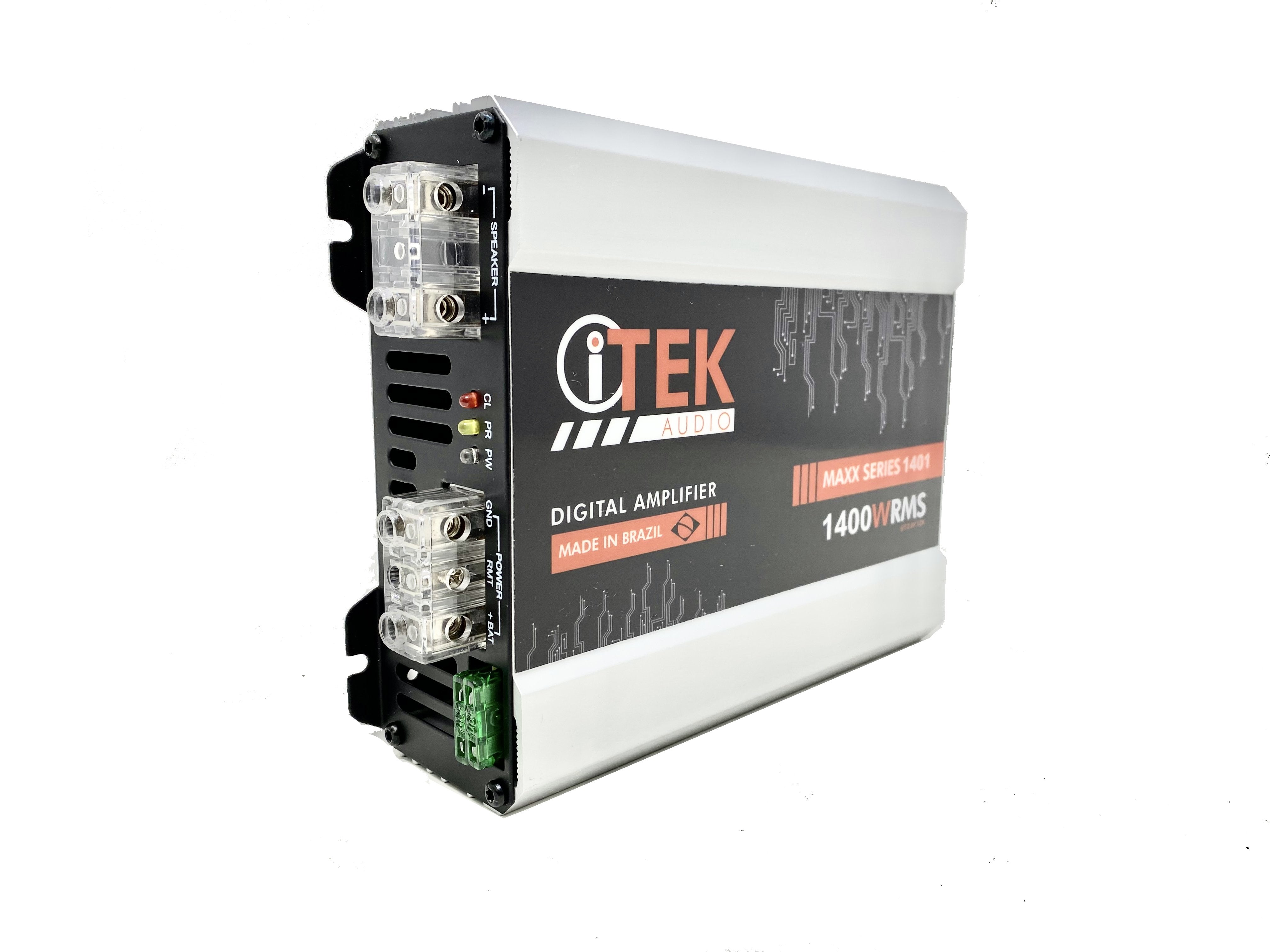

1400W X 1CH SUPRA SERIES
FEATURES GUIDE :
|
1400 Watts RMS Full Range Digital Amplifier @ 12.6V |
|
1CH independent output channel |
|
1400 Watts RMS @ 1 ohms, 2 ohms or 4 ohms ( Your Selection ) |
|
LED Indicators: Signal Clip |
|
Switched On MONO connection |
|
Active crossover : (LOW Pass at 40Hz / FULL / HI Pass at 125Hz) with independent frequency adjustment for LOW PASS AND HI PASS |
|
Full range: frequency response from 20Hz to 20KHZ |
|
Current Consumption (music) : 55 AMP Fuse Gain Control : 2 X 30AMP protection |
|
Line input with RCA connectors |
|
Low impedance protection |
|
Rated supply voltage: 13.0 V |
|
Minimum supply voltage: 11.0 V |
|
Maximum supply voltage: 14.9 V |
|
Input Impedance: 9.9 K |
|
Input Sensitivity: 162 Mv |
DIMS & WEIGHT :
|
Height : 2.9 INCHES |
|
Width : 5.55 INCHES |
|
Long : 6.30 INCHES |
|
Net weight : 2.27 LB |
|
Gross weight : 2.54 LB |
