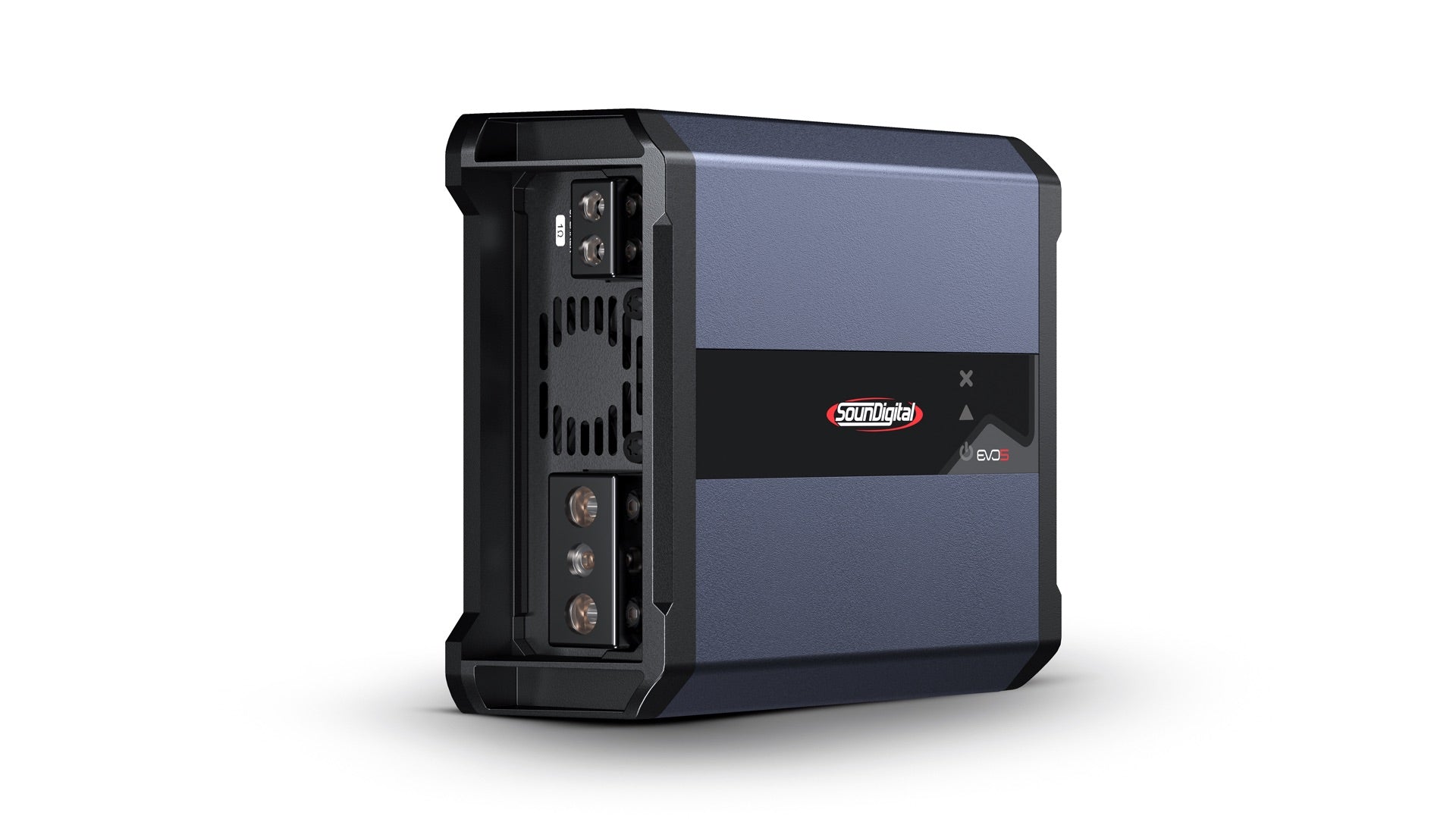

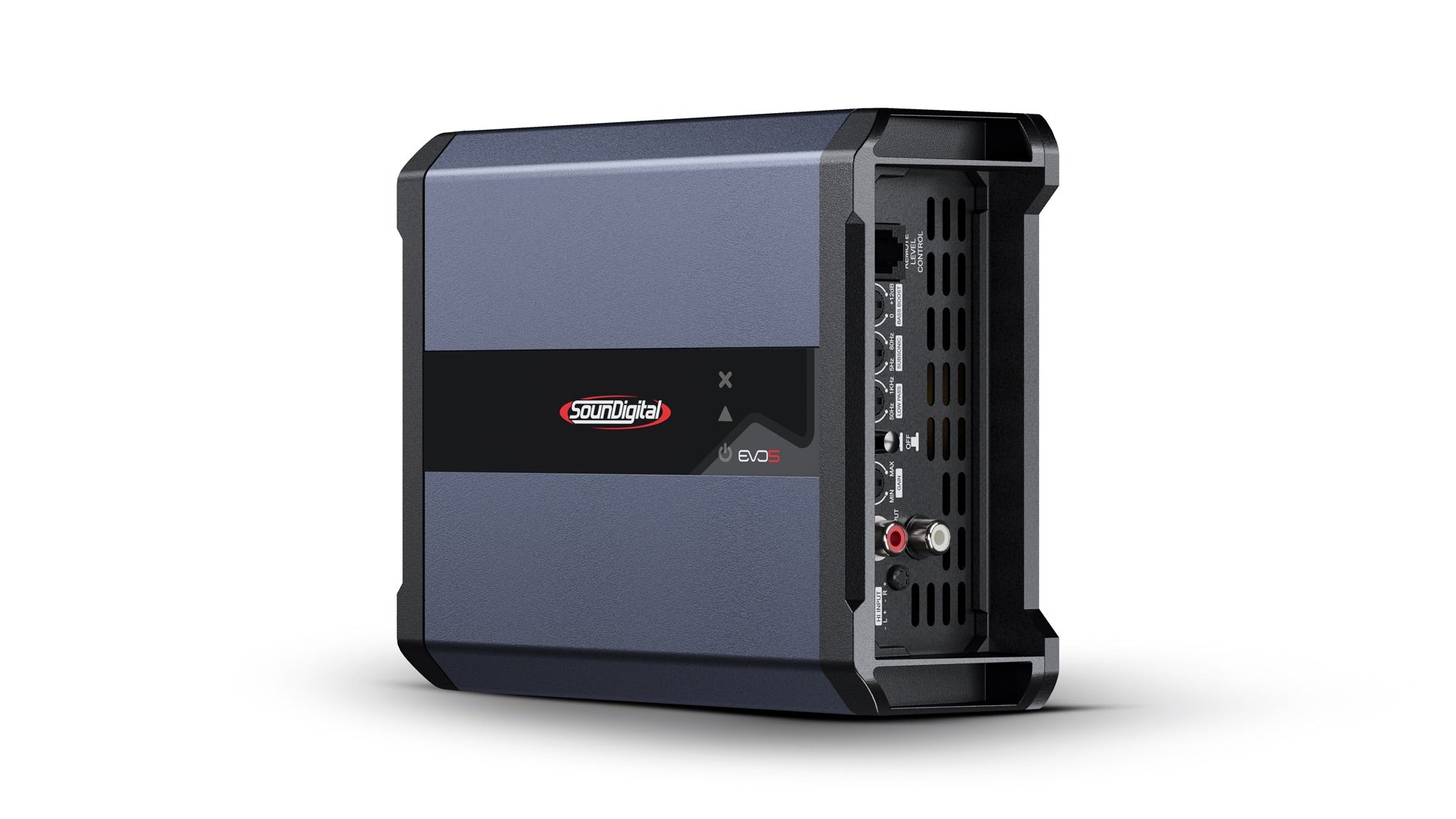

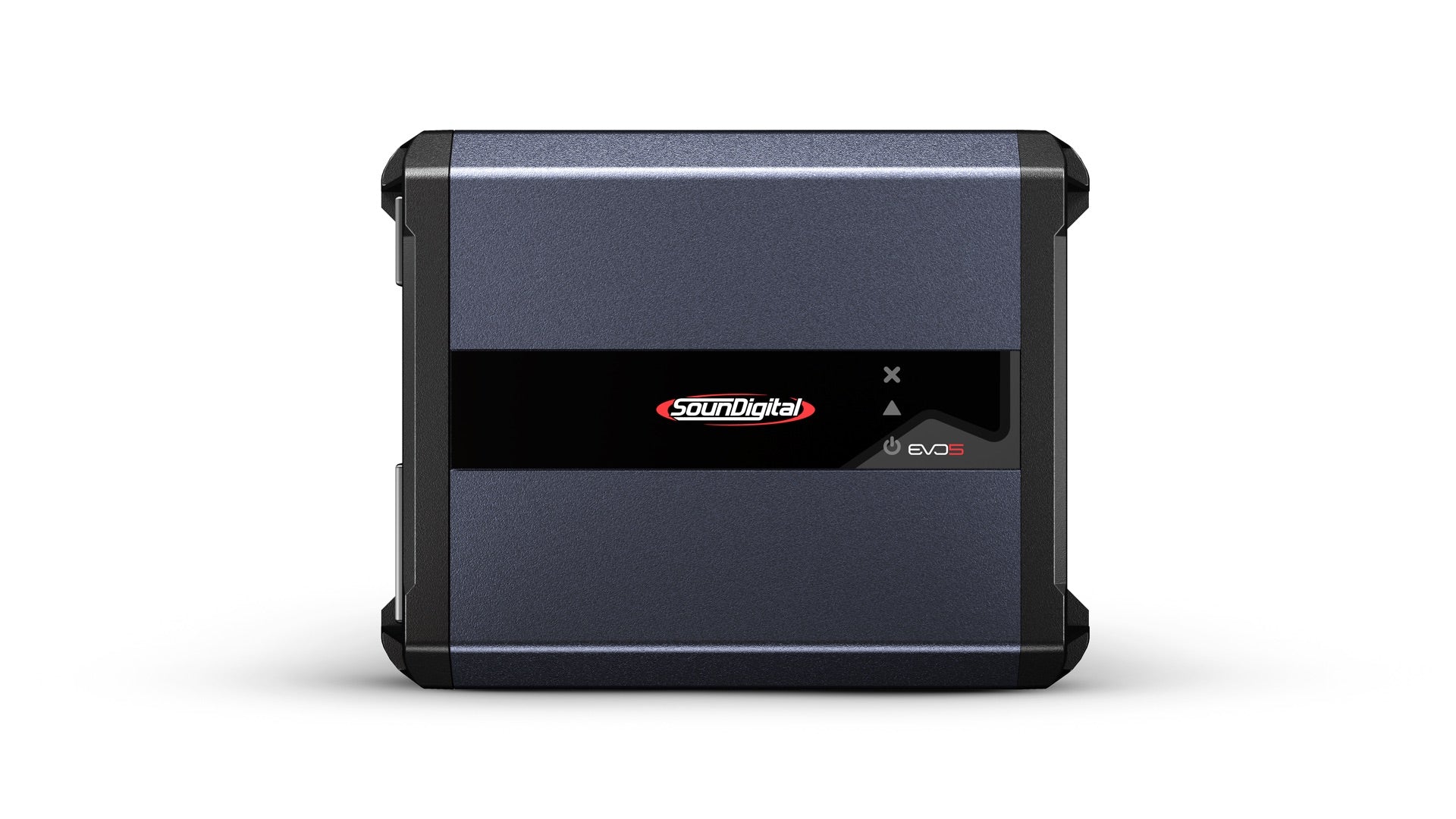

1600.1 EVO5
TECHNICAL SPECIFICATIONS
1600.1 EVO5 1Ω AND 2Ω STABLE
1600.1 EVO 5 - 1 OHM (12.6V)
Power @ 1Ω: 1 X 1600 WRMS
Power @ 2Ω: 1 X 1056 WRMS
Power @ 4Ω: 1 X 697 WRMS
Power @ 14.4V @ 1Ω : 1 x 2090 W RMS
Power @ 14.4V @ 2Ω: 1 x 1149 W RMS
Power @ 14.4V @ 4Ω: 1 x 632 W RMS
-
Response Frequency (-3dB):
5Hz ~ 25kHz
-
Subsonic Filter:
5Hz ~ 80Hz
-
Low Pass Filter:
50Hz ~ 1kHz
-
Bass Boost:
0dB ~ 12dB @ 50Hz
-
Power Voltage:
9V ~ 16V
-
Signal-Noise Ratio:
1Ω: 93.7dB
2Ω: 95dB
4Ω: 93.4dB -
Input Sensitivity:
0.2V ~ 2V
-
Music Consumption:
1Ω: 75A
2Ω: 71A
4Ω: 69.4A -
Consumption With Resistive Load:
1Ω: 149A
2Ω: 143A
4Ω: 138.8A -
Total Efficiency:
1Ω: 85%
2Ω: 89%
4Ω: 91.5% -
Damping Factor:
>2000
-
Power cable:
16mm² (5 AWG)
-
Audio Output Cable:
2 x 1.5 mm² (15 AWG)
-
Recommended Fuse (Musical):
80A
-
Recommended battery (Minimum for Musical Use):
80 Ah
-
Width:
13.6 cm
-
Length:
18 cm
-
Height:
5.48 cm
-
Weight:
1.13 kg
