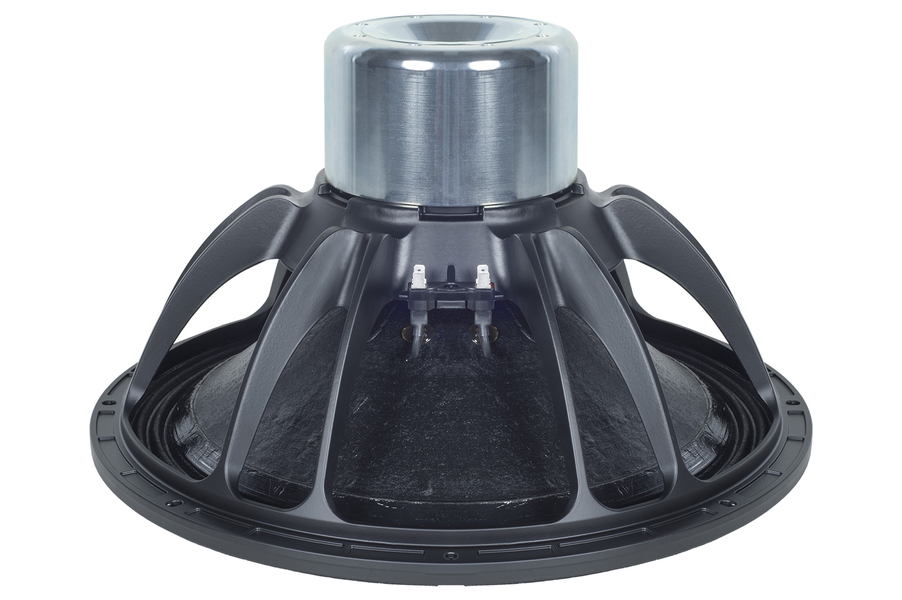

18IPAL
Specifications
- Nominal Diameter460 mm (18.0 in)
- Nominal Impedance2 Ω
- Minimum Impedance2.1 Ω
- Nominal Power Handling11700 W
- Continuous power handling23400 W
- Sensitivity (1W/1m)397.0 dB
- Frequency Range32 - 1000 Hz
- Voice Coil Diameter116 mm (4.5 in)
- Winding MaterialAluminium
- Former MaterialGlass Fibre
- Winding Depth44.0 mm (1.7 in)
- Magnetic Gap Depth12.0 mm (0.47 in)
- Flux Density1.5 T
Design
- Surround ShapeTriple Roll
- Cone ShapeRadial
- Magnet MaterialNeodymium Inside Slug
- SpiderDouble Silicone
- Pole DesignT-Pole
- Woofer Cone TreatmentTWP Waterproof Both Sides
- Recommended Enclosure150.0 dm3 (5.3 ft3)
- Recommended Tuning35 Hz
Parameters4
- Resonance Frequency32 Hz
- Re1.3 Ω
- Qes0.14
- Qms4.2
- Qts0.14
- Vas164.0 dm3 (5.8 ft3)
- Sd1210.0 cm2 (187.6 in2)
- η₀3.3 %
- Xmax± 20.0 mm
- Xvar± 15.0 mm
- Mms330.0 g
- Bl24.5 Txm
- Le0.65 mH
- EBP228 Hz
Mounting and Shipping Info
- Overall Diameter460 mm (18.0 in)
- Bolt Circle Diameter443 mm (17.44 in)
- Baffle Cutout Diameter422.0 mm (16.61 in)
- Depth261 mm (10.28 in)
- Flange and Gasket Thickness16 mm (0.63 in)
- Air Volume Occupied by Driver10.5 dm3 (0.37 ft3)
- Net Weight15.35 kg (33.84 lb)
- Shipping Units1
- Shipping Weight17.65 kg (38.91 lb)
- Shipping Box570x570x320 mm (22.44x22.44x12.60 in)
18IPAL
Precio de oferta$1,300.00
Precio normal (/)
