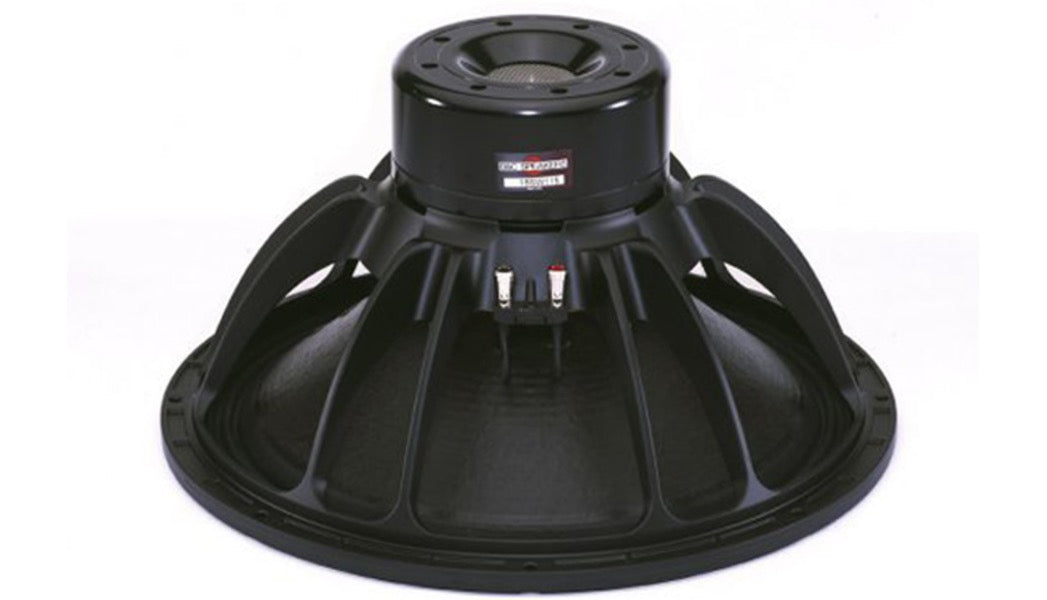

18SW115
Specifications
- Nominal Diameter460 mm (18.0 in)
- Nominal Impedance 4 Ω
- Minimum Impedance 3.8 Ω
- Nominal Power Handling11700 W
- Continuous power handling23400 W
- Sensitivity (1W/1m)397.0 dB
- Frequency Range35 - 1500 Hz
- Voice Coil Diameter116 mm (4.5 in)
- Winding MaterialCopper
- Former MaterialGlass Fibre
- Winding Depth34.0 mm (1.33 in)
- Magnetic Gap Depth14.0 mm (0.55 in)
- Flux Density1.16 T
Design
- Surround ShapeTriple Roll
- Cone ShapeRadial
- Magnet MaterialNeodymium Inside Slug
- SpiderDouble Silicone
- Pole DesignT-Pole
- Woofer Cone TreatmentTWP Waterproof Both Sides
- Recommended Enclosure150.0 dm3 (5.3 ft3)
- Recommended Tuning35 Hz
Parameters4
- Resonance Frequency32 Hz
- Re5.3 Ω
- Qes0.32
- Qms5.6
- Qts0.3
- Vas187.0 dm3 (6.5 ft3)
- Sd1210.0 cm2 (187.6 in2)
- η₀1.9 %
- Xmax± 14.0 mm
- Xvar± 16.0 mm
- Mms275.0 g
- Bl30.3 Txm
- Le1.9 mH
- EBP100 Hz
Mounting and Shipping Info
- Overall Diameter460 mm (18.0 in)
- Bolt Circle Diameter443 mm (17.44 in)
- Baffle Cutout Diameter422.0 mm (16.6 in)
- Depth242 mm (9.5 in)
- Flange and Gasket Thickness16 mm (0.62 in)
- Air Volume Occupied by Driver10.5 dm3 (0.37 ft3)
- Net Weight11.9 kg (26.2 lb)
- Shipping Units1
- Shipping Weight13.7 kg (30.2 lb)
18SW115
