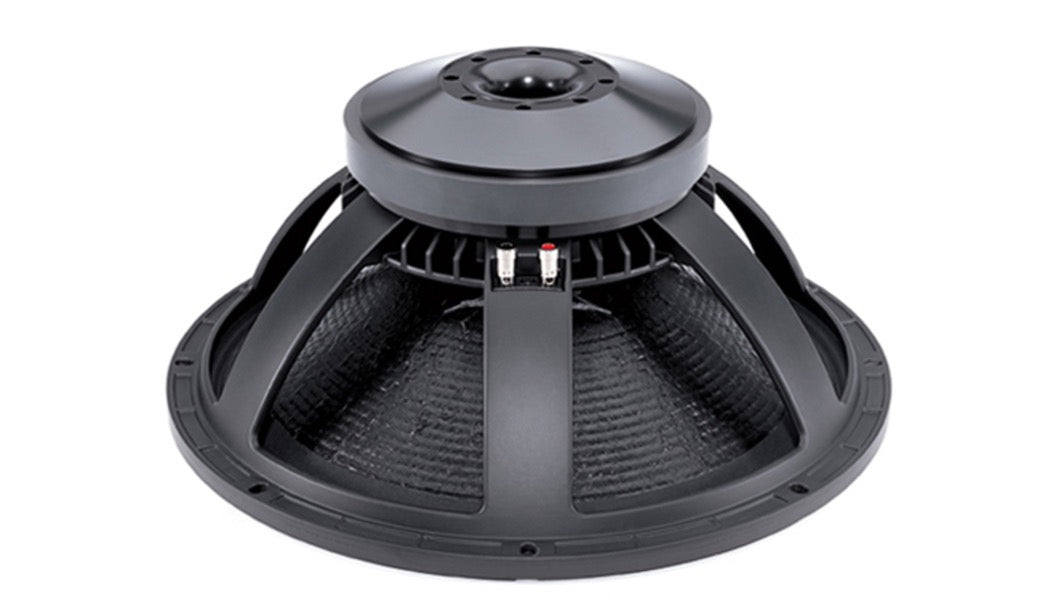

18TBX100
Specifications
- Nominal Diameter460 mm (18.0 in)
- Nominal Impedance 4 Ω
- Minimum Impedance 3.8 Ω
- Nominal Power Handling11200 W
- Continuous power handling22400 W
- Sensitivity (1W/1m)397.0 dB
- Frequency Range35 - 1000 Hz
- Voice Coil Diameter100 mm (4.0 in)
- Winding MaterialCopper
- Former MaterialGlass Fibre
- Winding Depth25.0 mm (1.0 in)
- Magnetic Gap Depth12.0 mm (0.5 in)
- Flux Density1.1 T
Design
- Surround ShapeTriple Roll
- Cone ShapeRadial
- Magnet MaterialFerrite
- SpiderDouble Silicone
- Pole DesignT-Pole
- Woofer Cone TreatmentTWP Waterproof Both Sides
- Recommended Enclosure200.0 dm3 (7.06 ft3)
- Recommended Tuning34 Hz
Parameters4
- Resonance Frequency34 Hz
- Re5.1 Ω
- Qes0.37
- Qms7.2
- Qts0.35
- Vas212.0 dm3 (7.5 ft3)
- Sd1210.0 cm2 (187.6 in2)
- η₀2.2 %
- Xmax± 9.0 mm
- Xvar± 11.0 mm
- Mms209.0 g
- Bl25.5 Txm
- Le1.6 mH
- EBP91 Hz
Mounting and Shipping Info
- Overall Diameter460 mm (18.0 in)
- Bolt Circle Diameter440 mm (17.3 in)
- Baffle Cutout Diameter422.0 mm (16.6 in)
- Depth209 mm (8.2 in)
- Flange and Gasket Thickness16 mm (0.63 in)
- Air Volume Occupied by Driver10.5 dm3 (0.37 ft3)
18TBX100
Precio de oferta$349.00
