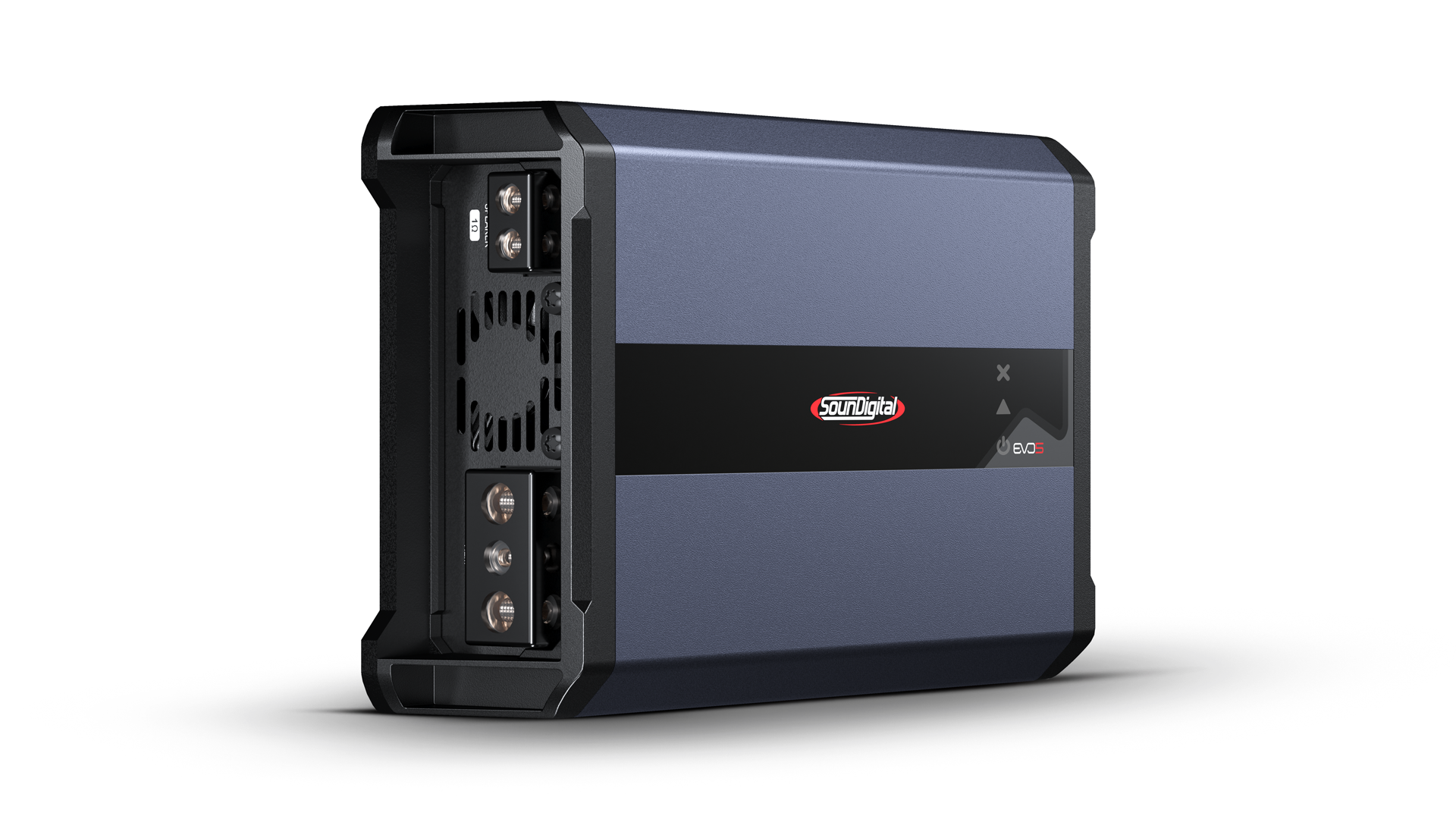

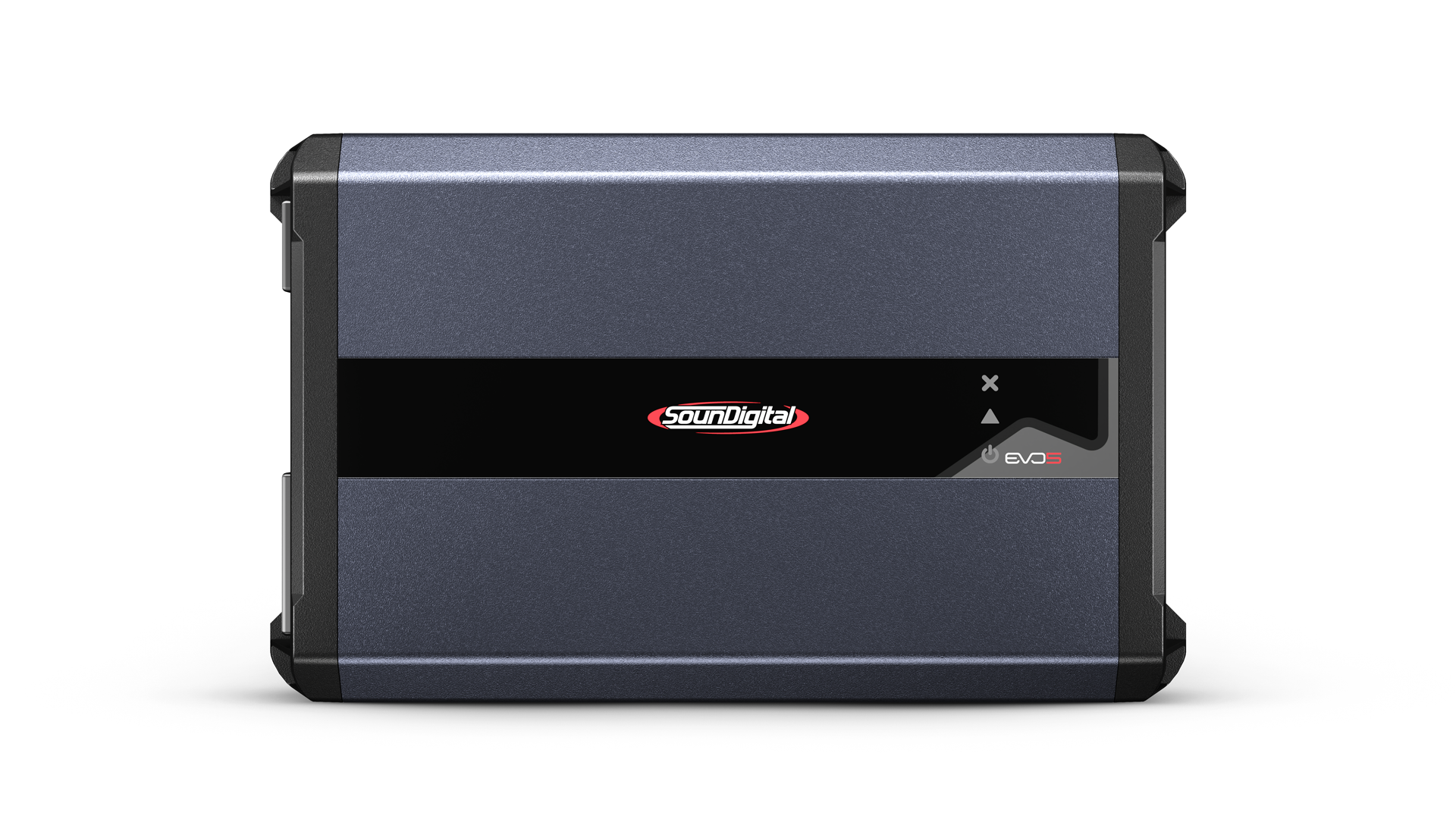

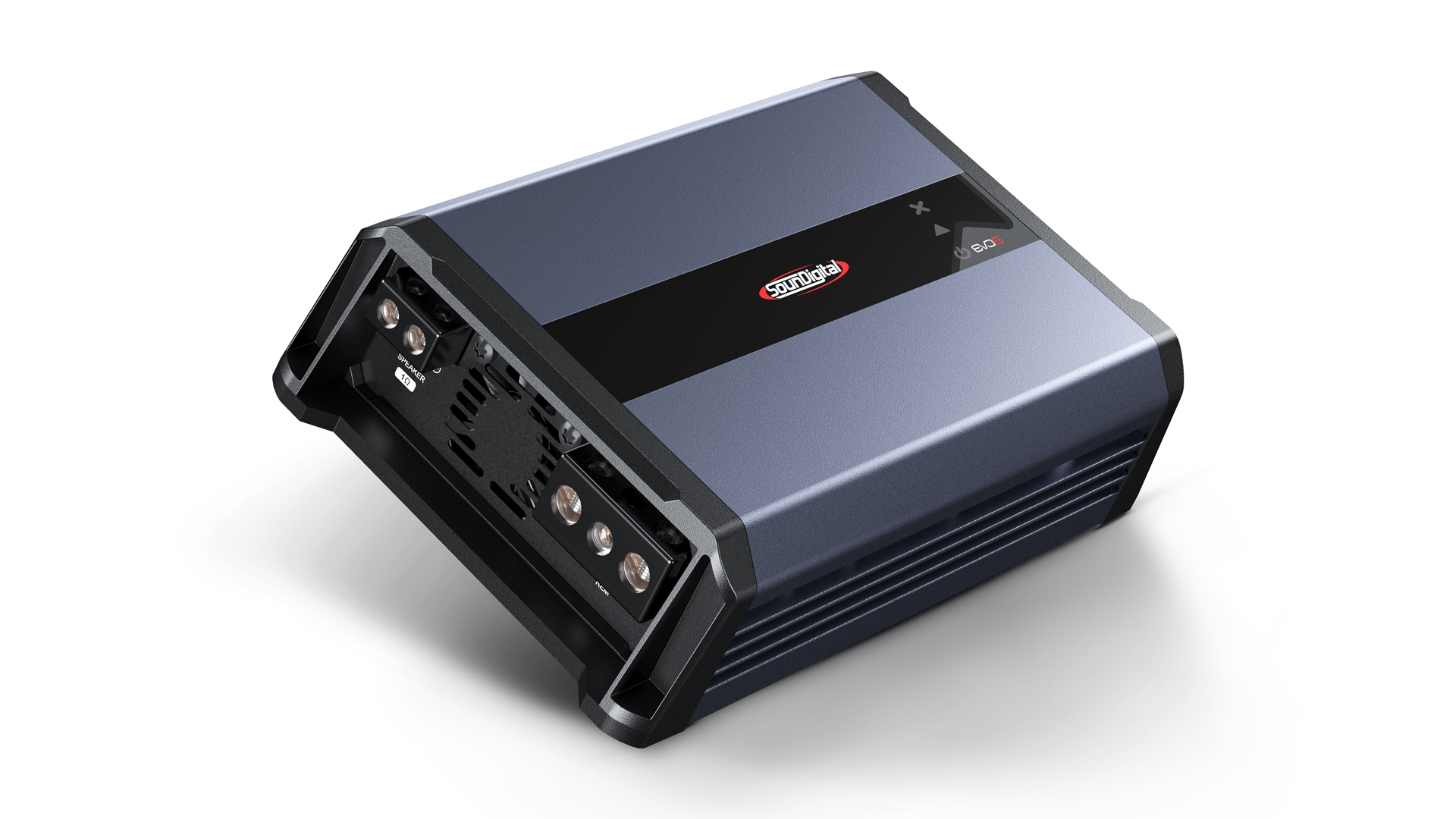

3000.1 EVO5

3000.1 EVO 5 – 1 OHM AND 2 OHM

Power @ 1Ω: 1 X 3000W RMS
Power @ 2Ω: 1 X 1980W RMS
Power @ 4Ω: 1 X 1307W RMS

3000.1 EVO 5 – 2 OHMS

Power @ 1Ω: N/A
Power @ 2Ω: 1 X 3000W RMS
Power @ 4Ω: 1 X 1980W RMS

Frequency Response (-3db): 5Hz ~ 25kHz

Subsonic Filter: 5Hz ~ 80Hz

Low Pass Filter: 50Hz ~ 1kHz

Bass Boost: 0dB ~ 12dB @ 50Hz

Power Voltage: 8V – 16V

Signal-Noise Ratio: 92dB

Input Sensitivity: 0.2V~2V

Music Consumption:

1Ω: 149A
2Ω: 139A
4Ω: 140A

Consumption with Resistive Load:

1Ω: 298A
2Ω: 277A
4Ω: 280A

Total Efficiency:

1Ω: 80%
2Ω: 86%
4Ω: 85%

Damping Factor: >2000

Power cable: 35mm² (2AWG)

Audio Output Cable:

1Ω: 2 x 4.0 mm² (11 AWG)
2Ω: 2 x 2.5 mm² (13 AWG)
4Ω: 2 x 1.5 mm² (15 AWG)

Fuse (Musical Use): 150A

Recommended Battery: 150Ah

Width: 13,6 cm

Length: 22,8 cm

Height: 5,48 cm

Weight: 1,75 Kg
