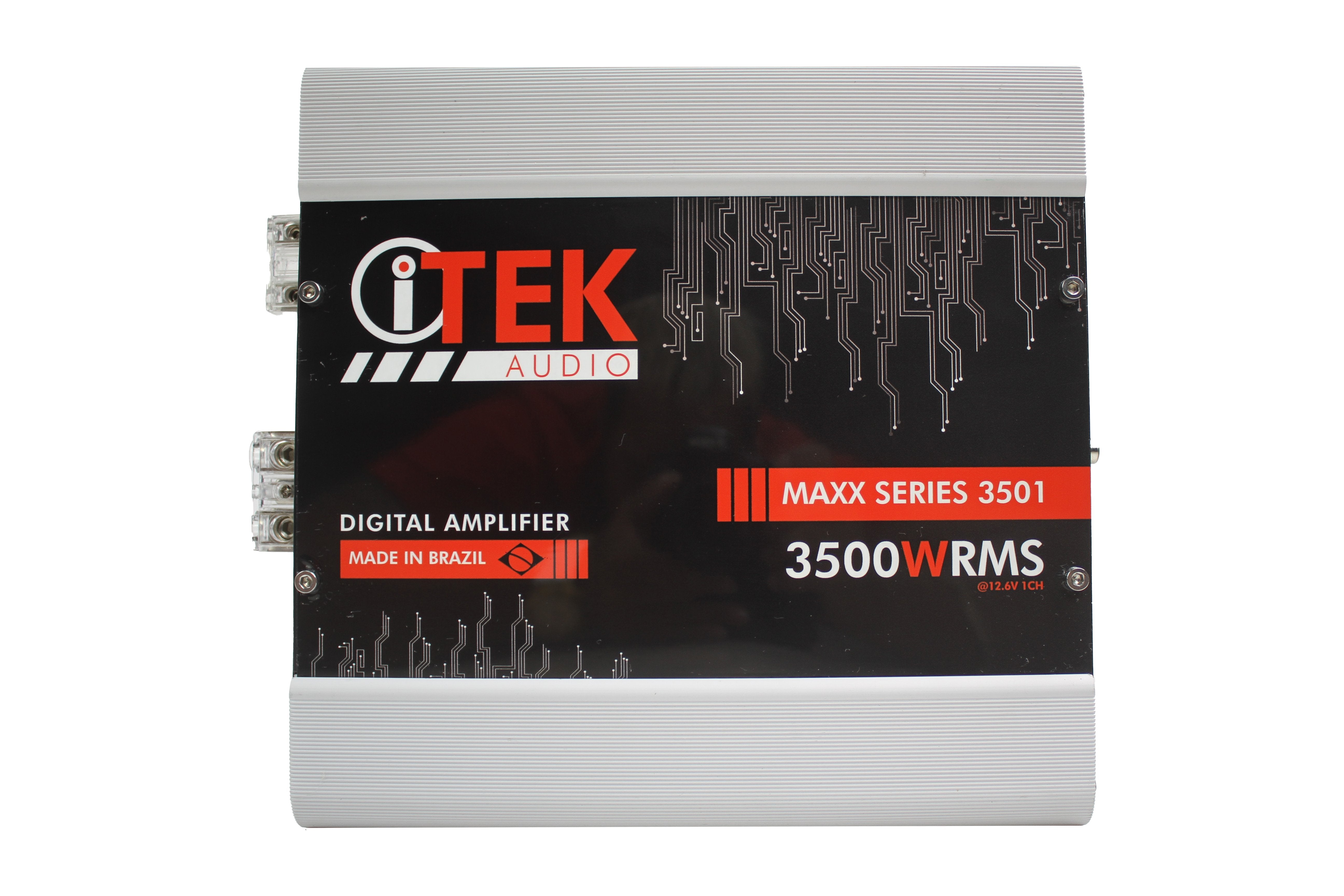

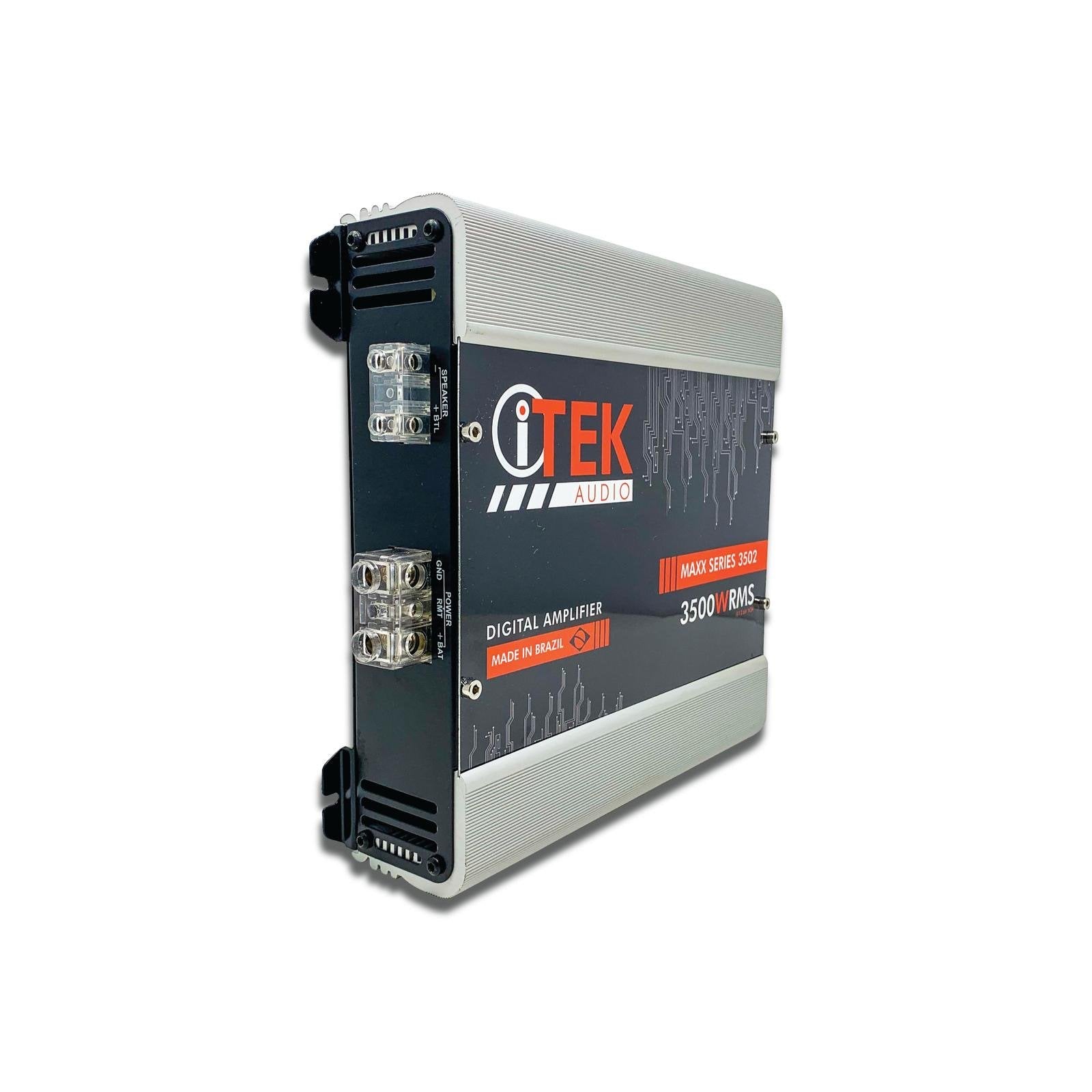

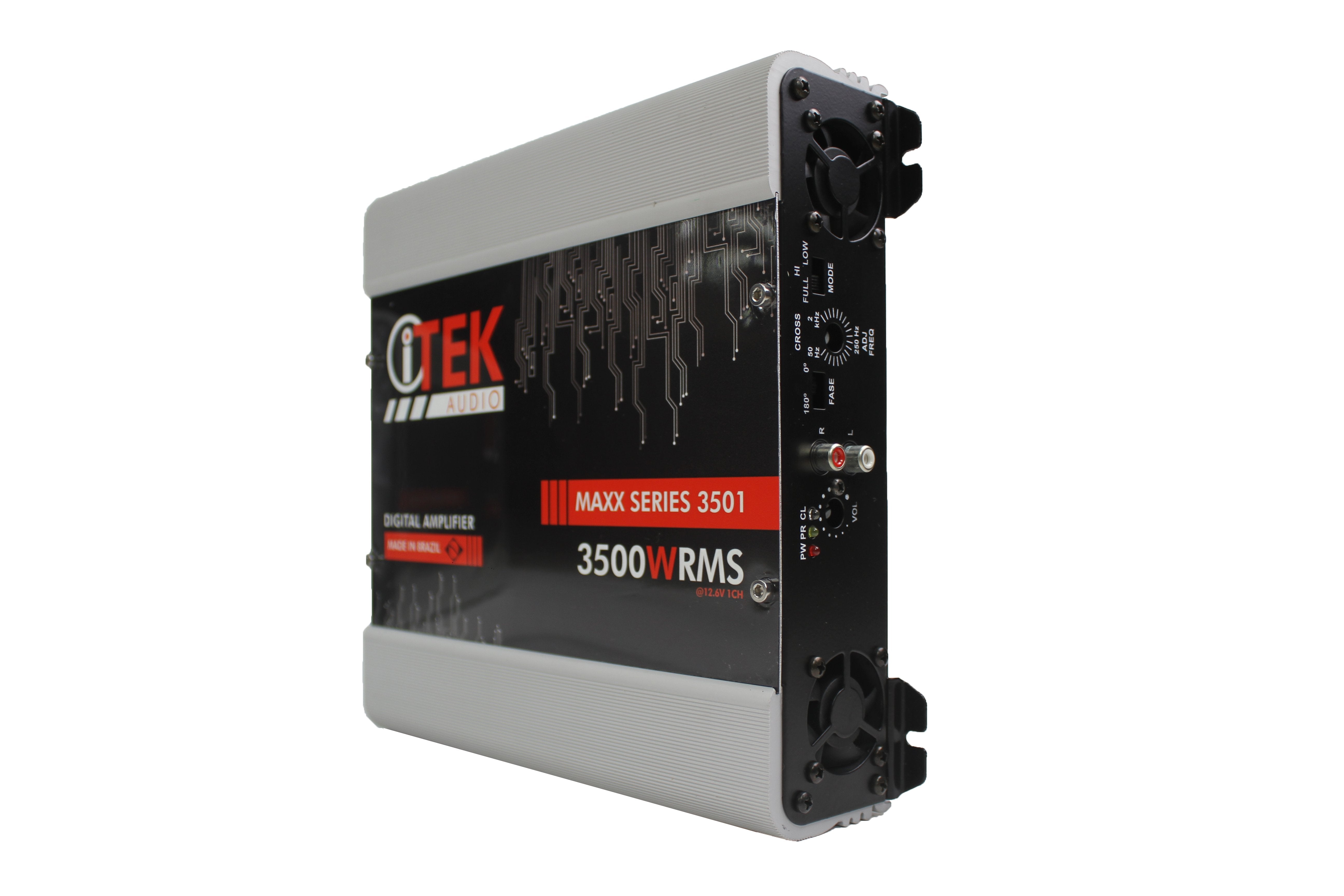

3500W X 1CH MAXX SERIES

3500 Watts RMS Full Range Digital Amplifier @ 12.6V

1CH independent output channel

3500 Watts RMS @ 1 ohms or 2 ohms ( Your Selection )

LED Indicators: Signal Clip

Switched On MONO connection

Active variable crossover : (LOW Pass at 40Hz / FULL / HI Pass at 125Hz) with independent frequency adjustment for LOW PASS AND HI PASS

Full range: frequency response from 50Hz to 16KHZ

Current Consumption (music) : 95 AMP

Line input with RCA connectors

Low impedance protection

Rated supply voltage: 12.6V - 13.0 V

Minimum supply voltage: 11.0 V

Maximum supply voltage: 14.9 V

Input Impedance: 10 K

Input Sensitivity: 162 Mv

Height : 2.9 INCHES

Width : 9.50 INCHES

Long : 10.40 INCHES

Net weight : 7.0 LB

Gross weight : 7.39 LB
