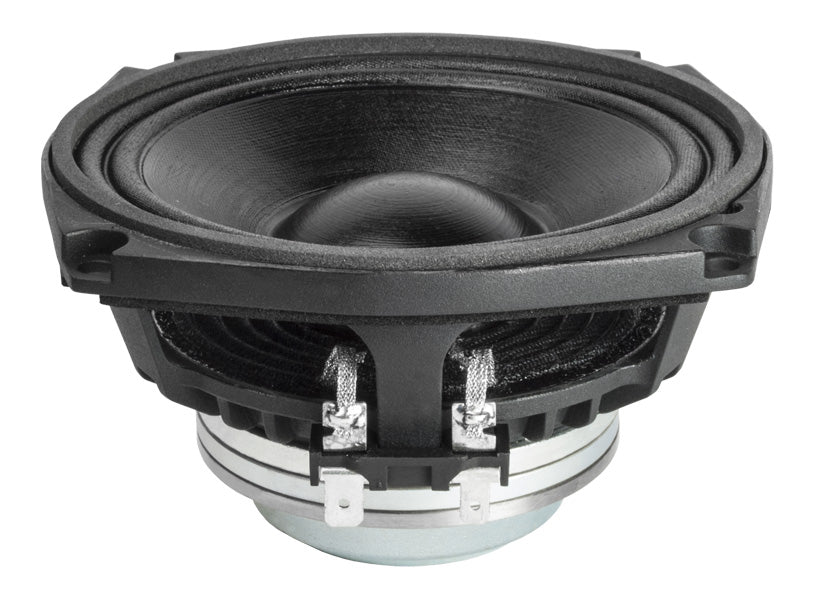

5PR160
NOMINAL SPECIFICATIONS
NEODYMIUM MAGNET
| Nominal Diameter | 130 mm (5 in) |
| Overall Diameter | 150/128.2 mm (5.91/5.05 in) |
| Bolt Circle Diameter | 139 mm (5.47 in) |
| Baffle Cutout Diameter | 118 mm (4.65 in) |
| Depth | 74 mm (2.91 in) |
| Flange and Gasket Thickness | 9 mm (0.35 in) |
| Net Weight | 0.85 kg (1.9 lb) |
| Shipping Box (Single Carton Box) |
185 x 170 x 102 mm (7.3 x 6.7 x 4.0 in) |
| Shipping Weight | 1.0 kg (2.2 lb) |
TECHNICAL PARAMETERS
| Nominal Impedance | 8 Ohm |
| Minimum Impedance | 6.1 Ohm |
| AES Power Handling (1) | 120 W |
| Maximum Power Handling (2) | 240 W |
| Sensitivity (1W/1m) | 92 dB |
| Frequency Range | 100÷6500 Hz |
| Voice Coil Diameter | 37 mm (1.46 in) |
| Winding Material | Al |
| Former Material | Kapton |
| Winding Depth | 12.2 mm (0.48 in) |
| Magnetic Gap Depth | 6 mm (0.24 in) |
| Flux Density | 1.4 T |
| Magnet | Neodymium Ring |
| Basket Material | Aluminum |
| Demodulation | Aluminum Ring |
| Cone Surround (3) | M-Roll |
| NET Air Volume filled by Loudspeaker | 0.25 dm^3 (0.009 ft^3) |
| Spider Profile | 1x constant height waves |
5PR160
