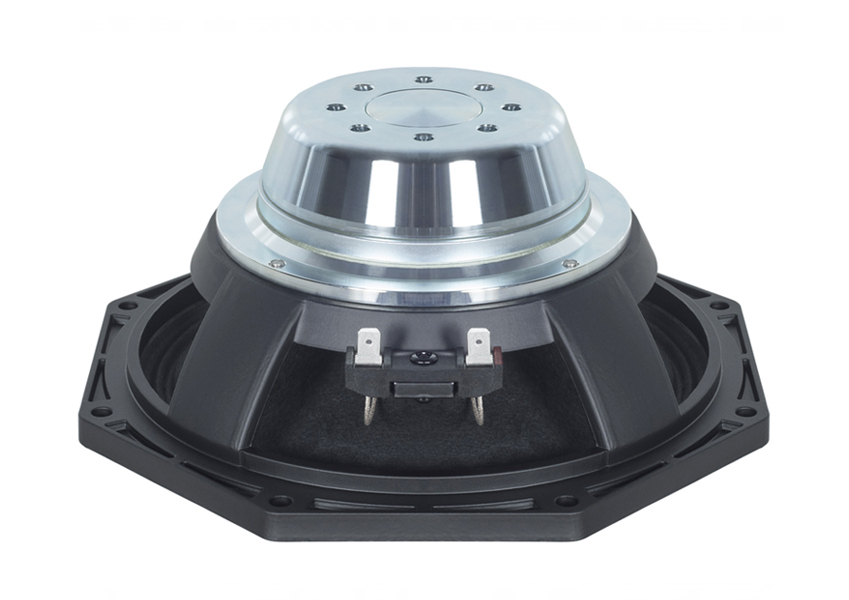

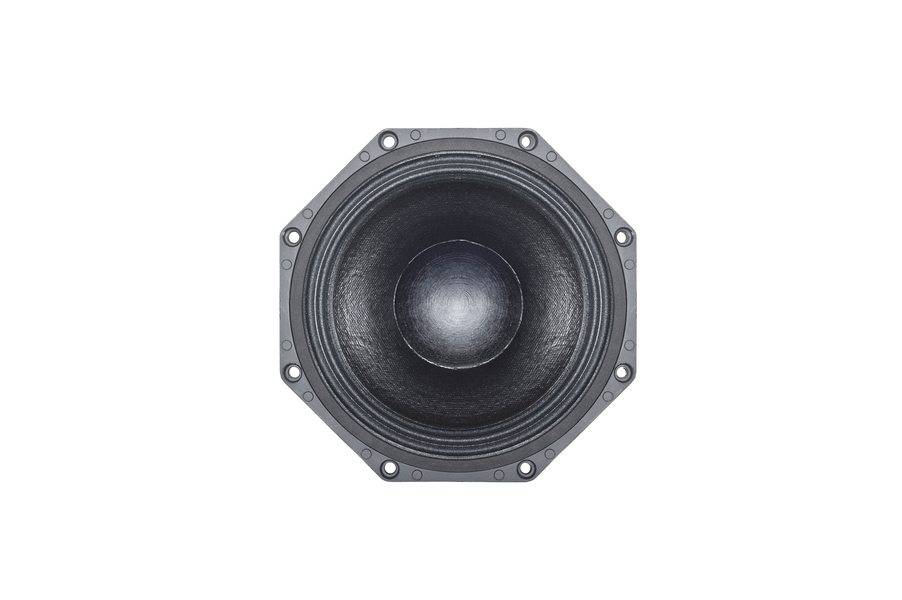

8MDN51
Specifications
- Nominal Diameter200 mm (8.0 in)
- Nominal Impedance 8 Ω
- Minimum Impedance 7.4 Ω
- Nominal Power Handling1200 W
- Continuous power handling2400 W
- Sensitivity (1W/1m)397.0 dB
- Frequency Range70 - 4000 Hz
- Voice Coil Diameter51 mm (2.0 in)
- Winding MaterialAluminium
- Former MaterialKapton
- Winding Depth16.0 mm (0.65 in)
- Magnetic Gap Depth8.0 mm (0.31 in)
- Flux Density1.45 T
Design
- Surround ShapeDouble Roll
- Cone ShapeExponential
- Magnet MaterialNeodymium Ring
- SpiderSingle
- Pole DesignT-Pole
- Woofer Cone TreatmentWP Waterproof Front Side
Parameters4
- Resonance Frequency68 Hz
- Re10.0 Ω
- Qes0.29
- Qms5.2
- Qts0.27
- Vas17.5 dm3 (0.62 ft3)
- Sd220.0 cm2 (34.1 in2)
- η₀1.5 %
- Xmax± 6.0 mm
- Xvar± 6.0 mm
- Mms22.0 g
- Bl17.8 Txm
- Le1.25 mH
- EBP234 Hz
Mounting and Shipping Info
- Overall Diameter225 mm (8.8 in)
- Bolt Circle Diameter210 mm (8.3 in)
- Baffle Cutout Diameter187.0 mm (7.4 in)
- Depth95 mm (3.74 in)
- Flange and Gasket Thickness11 mm (0.4 in)
- Air Volume Occupied by Driver1.1 dm3 (0.04 ft3)
- Net Weight2.55 kg (5.6 lb)
- Shipping Units1
- Shipping Weight3.0 kg (6.61 lb)
- Shipping Box255x255x150 mm (10.04x10.04x5.91 in)
8MDN51
Precio de oferta$199.00
Precio normal (/)
