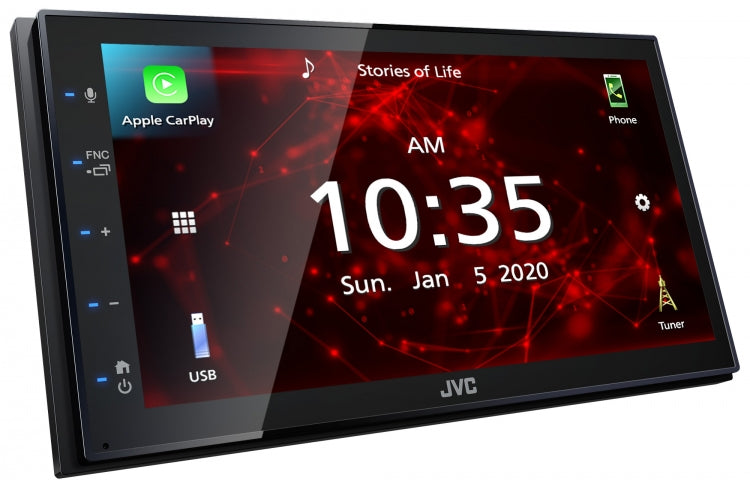

KW-M650BT

APPLE CAR PLAY & ANDROIDE AUTO

Monitor

Screen Size

6.8"W VGA Screen

Touch Panel

Capacitive

Gesture Touch Control

Yes

Customisable GUI

Yes

Key Illumination Color

Blue

Dimmer

Yes

Multilingual Display

Yes[4]

Media Playback

MP3 Compatible with Tag

USB

WMA Compatible with Tag

USB

WAV Compatible with Tag

USB

AAC Compatible with Tag

USB

FLAC Compatible with Tag

USB

H.264 Compatible

USB

WMV Compatible

USB

MPEG 1/2 Compatible

USB

MPEG 4 Compatible

USB

AVI/MKV Compatible

USB

Bluetooth Control

Built-in Bluetooth[1]

Yes (Wired-Mic included)

Hands Free Call

Yes (HFP1.6 Wideband Speech)

Audio Streaming & Control (A2DP, AVRCP)

Yes

Supported Audio Formats

AAC / SBC

Voice Dialing (voice recognition compatible mobile phone required)

Yes

Phone Book Access Profile (PBAP)

Yes

Alphabetical Search for Phone Book

Yes

Auto Pairing for iPhone/Android

Yes (Android only)

Android Control

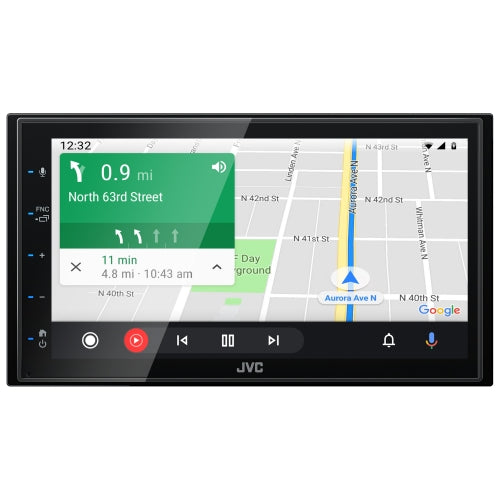

Android Auto[2]

Yes (via USB)

Mirroring for Android

Yes (via USB) *Need mirroring App

Android Music Playback

Yes (via Bluetooth(R))

iPod/iPhone Control

CarPlay[3]

Yes (via USB)

USB

USB Port

x 1 (High Speed)

Position

Rear

USB Power Supply

Yes (1.5A High Current Charging)

Radio Tuner

Radio Data System

Yes

Preset Stations

20(FM:15ch, AM:5ch)

Auto Memory Entry

Yes

FM

Frequency Range

87.5-108.0MHz

AM

Frequency Response

531-1,611kHz

Audio

Maximum Power Output (Front & Rear)

50Wx4

Full Bandwidth Power (Front & Rear)

22W x 4 (Full Bandwidth Power, at less than 1% THD)

EQ

Yes (13-Band Graphic EQ)

Preset EQ

Yes (7Preset + 3user)

Bass Boost

Yes

High-Pass Filter/Low-Pass Filter

Yes/Yes

Time Alignment

Yes

Inputs and Outputs

AV Input

mini jack

Video Out

RCA

Rear view camera Input

Yes

Line Output Terminals

2Preouts (Terminal) + Sub WF (Cable)

Pre-output Level/Impedance

2.0V / 10k ohms

Subwoofer Output with Level/Frequency Control

Yes

General

Back Up Memory

Yes

Wireless Remote Control Type

Ready (RM-RK258 required)

Steering Remote Control Ready

Yes

Learning Direct OEM Remote

Yes

ISO Connector

Yes

Dimensions (W x H x D)

Installation Size

178 x 100 x 75 (mm)

Weight

1.1kg

Unit weight in individual package

1.8kg
